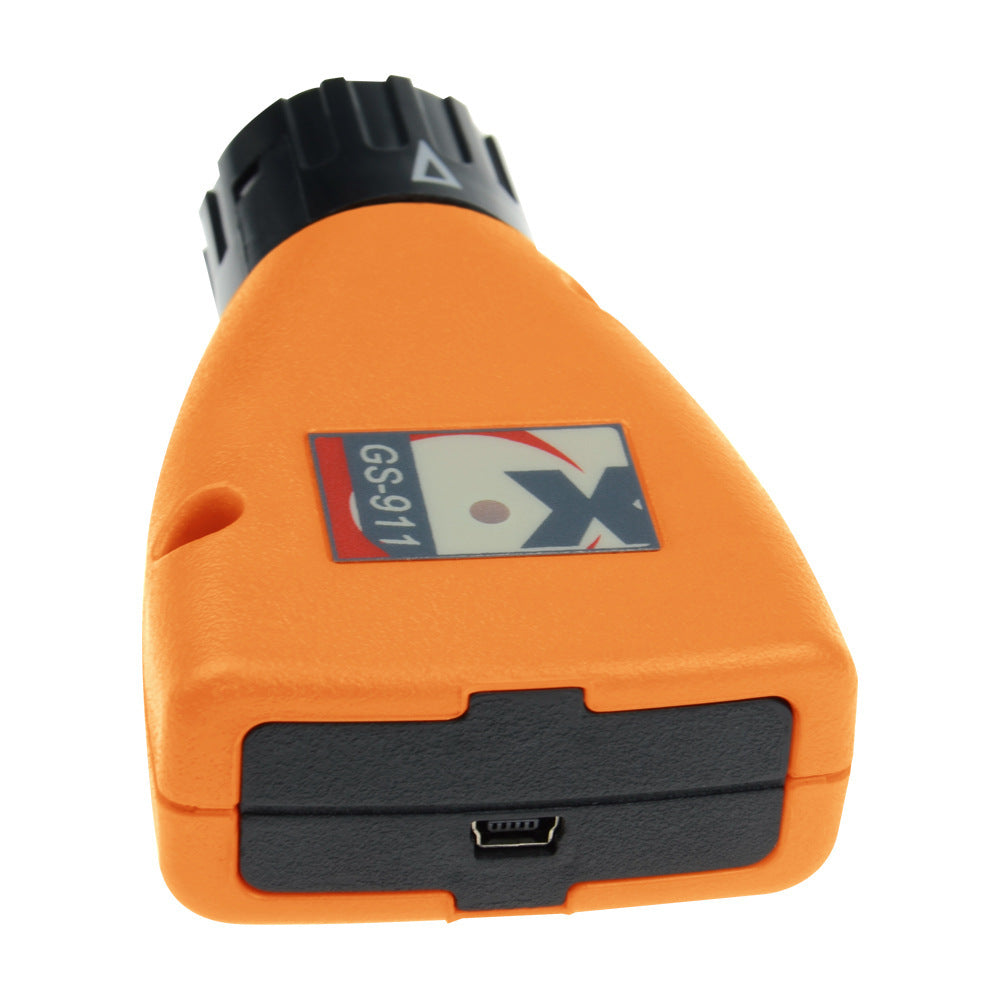

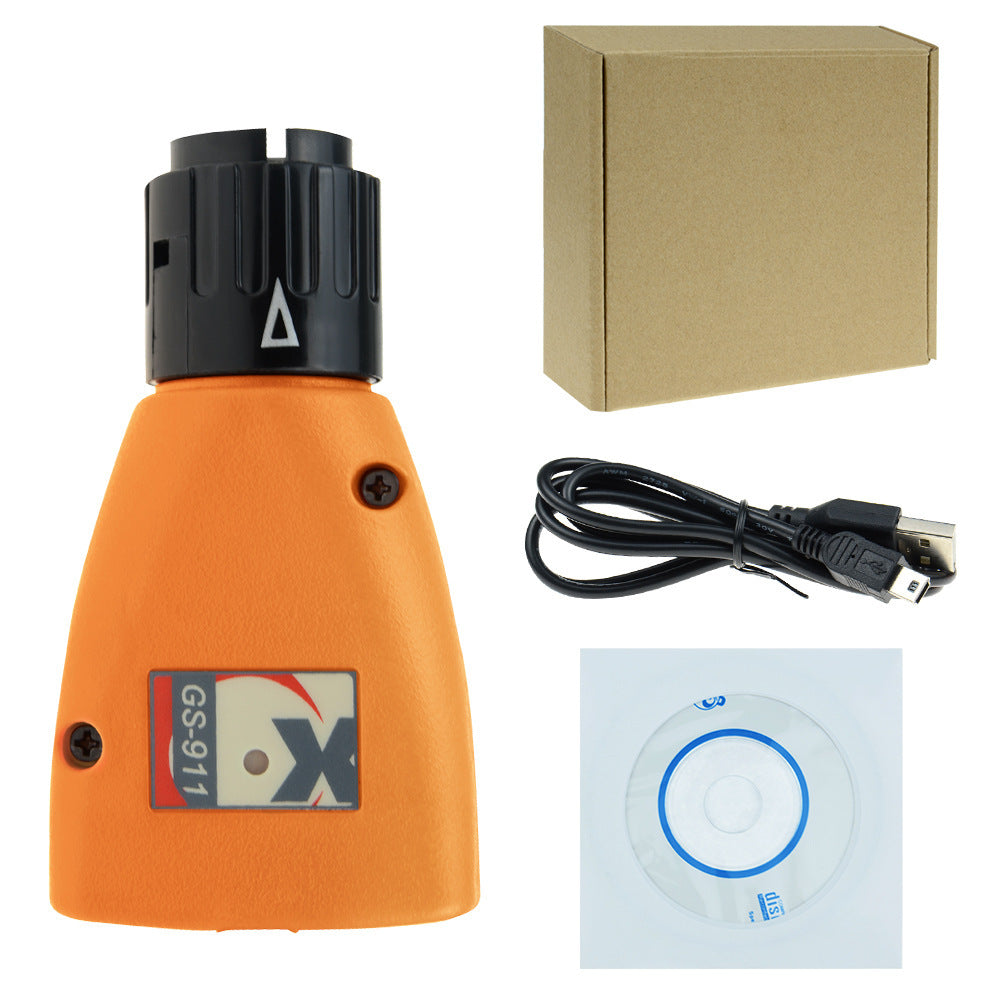

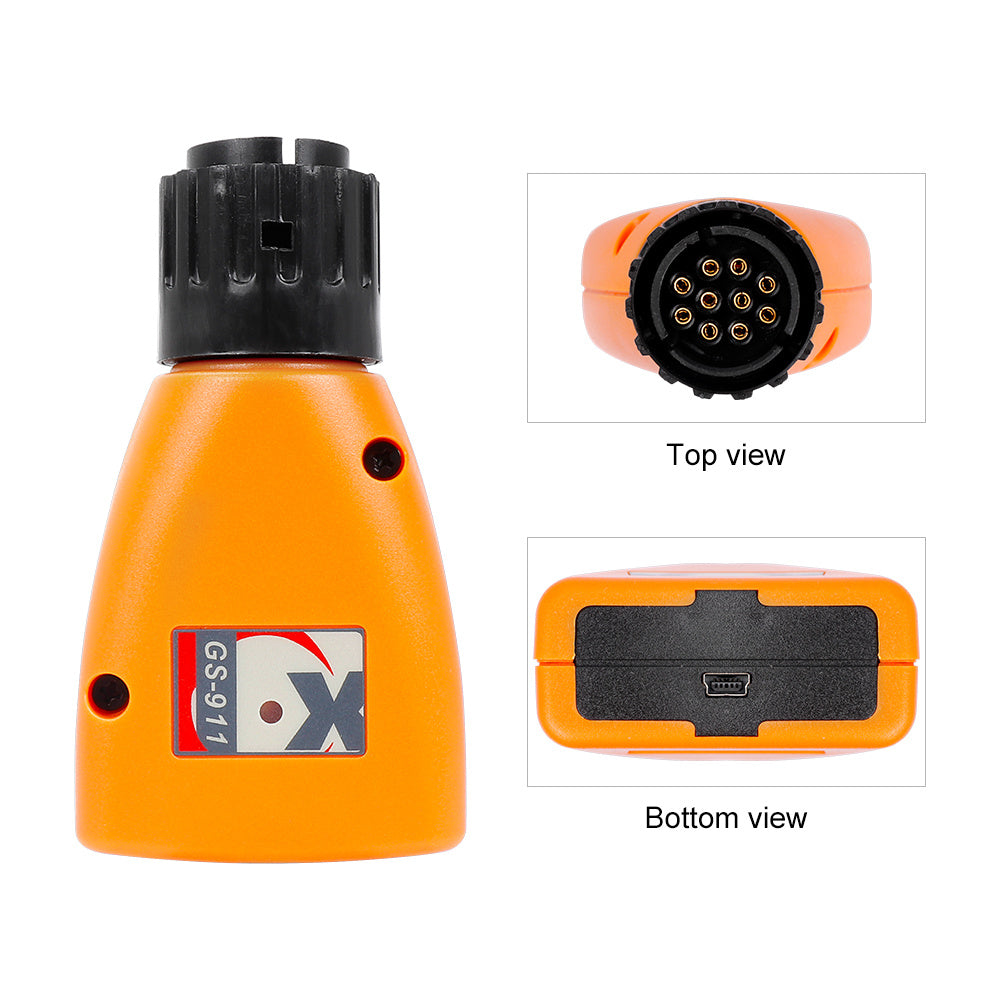

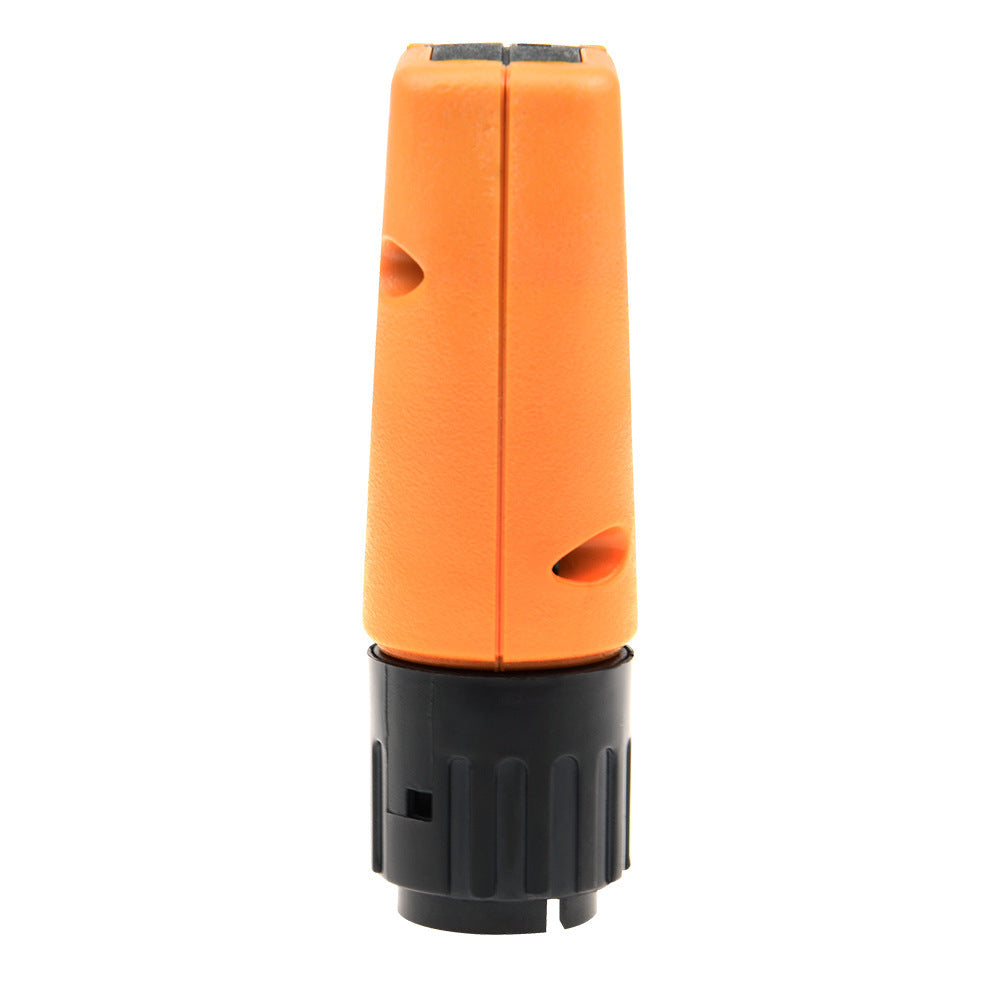

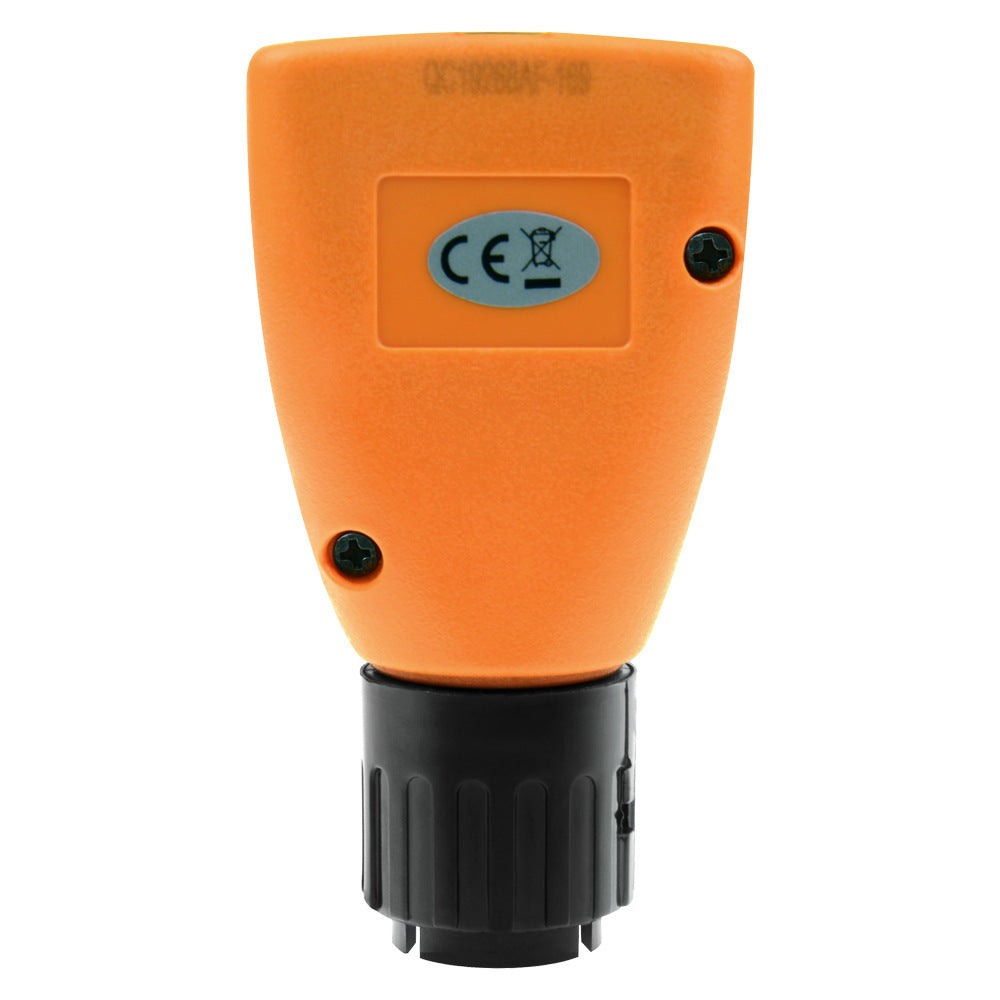

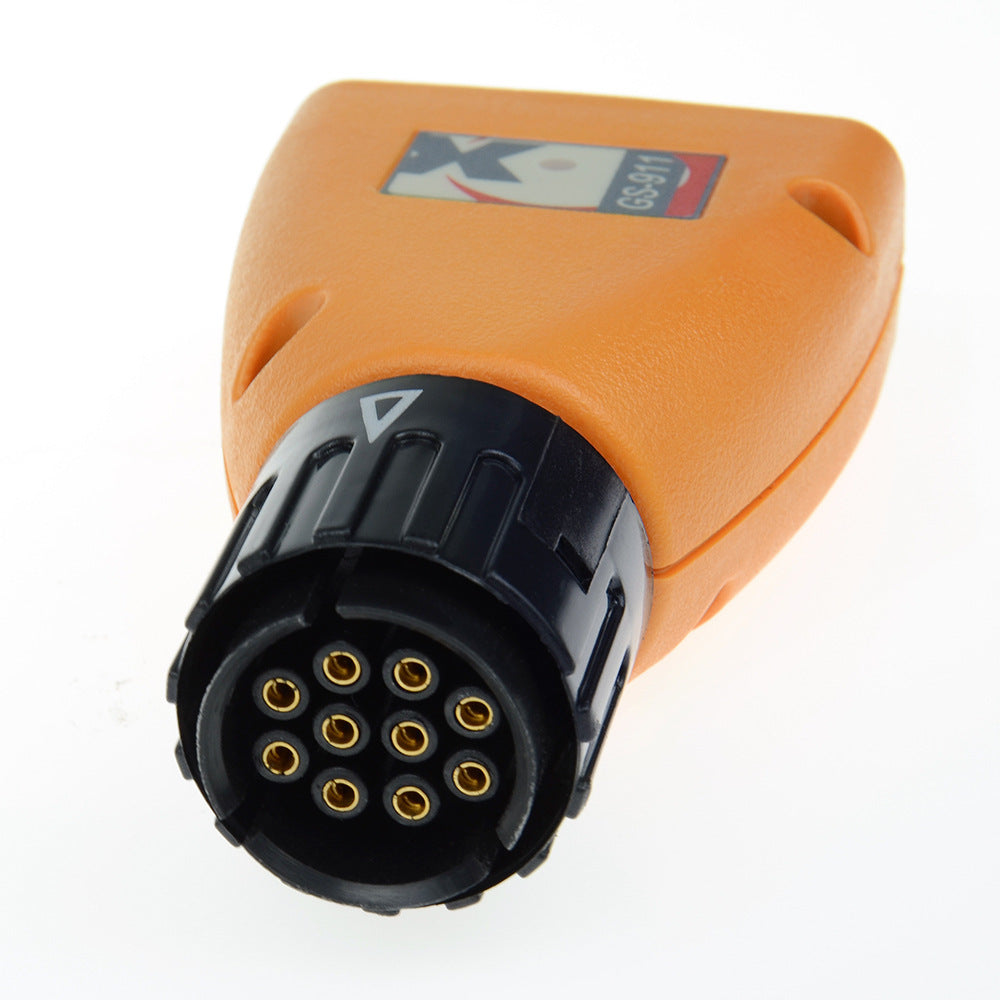

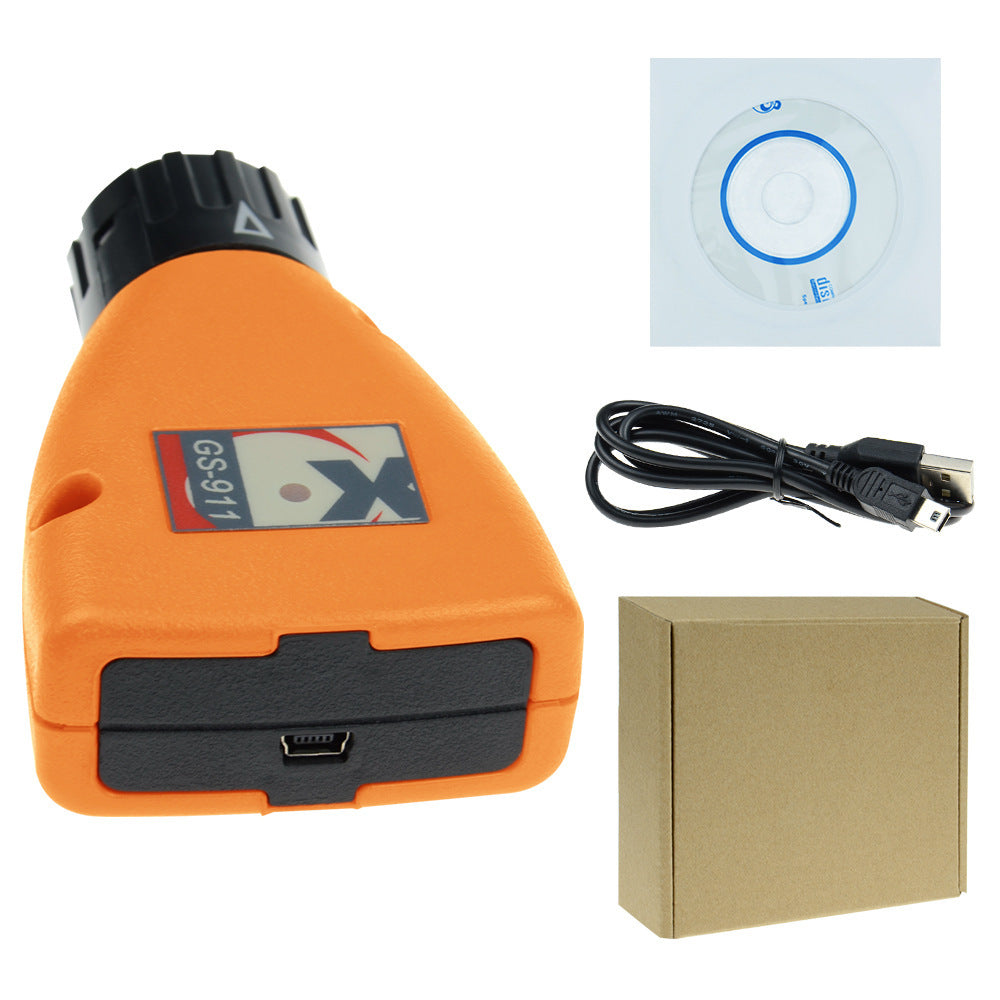

GS-911 V1006.3 Emergency Diagnostic Tool

Function:

1.Read Diagnostic Fault Codes

This shows the Fault codes and text descriptions of the faults stored on the Electronic Control Unit.

2.Shows ECU information

See hardware and software versions, manufacturing dates, and other manufacturer related data.

3.Clears Diagnostic Fault Codes

Enables you to erase fault codes once the problem has been fixed.

4.Real-time Analog and Digital values for Engine control units

view and log the real-time values (very dependent on the type of controller)

5.Service Functionality

Support Model List:

Shown here are models covered in either of the full release or the latest Beta.

R-Series:

HP2, HP2 Megamoto, R1200GS, R1200GS Adventure, R1200RT, R1200R, R1200ST, R1200S, R1200S HP2

R1200C, R1200CL

R1150GS, R1150GS Adventure, R1150RT, R1150R, R1150RS (single- and twin-spark on all models)

R1100S (single and twin-spark)

R850C, R850R, R850RT

K-Series:

K1300GT, K1300R, K1300S

K1200GT, K1200R, K1200R Sport, K1200S,

K1200LT, K1200GT (non-CAN), K1200RS

F-Series:

F800S, F800ST, F800GS, F800R

F650GS (800cc 2 cylinder)

F650CS, F650GS, F650GS Dakar (single- and twin-spark on all models)

G-Series:

G650Xchallenge, G650Xcountry, G650Xmoto

G650GS

G450X

C-Series:

C1, C1-200

S-Series:

S1000RR

Compatible System:

This depends on the bike model, but in general we cover the following:

1.Engine controller (BMS-K, BMS-KP, BMS-C, BMS-CII, MA2.4, KMS-K16)

2.ABS (ABS-II, ABS-N, Integral-ABS, Integral-ABS-CAN, Integral-ABS2-CAN, ABS8, ABS8MOC)

3.Central Vehicle Electronics (ZFE-Basic (low, mid, high), ZFE-Low, ZFE-High(full, no-ESA, ESA-only))

4.Instrument cluster (Kombi-H, Kombi-L, Kombi-7x, Kombi-2D)

5.DWA (Anti-Theft Alarm system)

6.RDC (Tyre Pressure Control)
