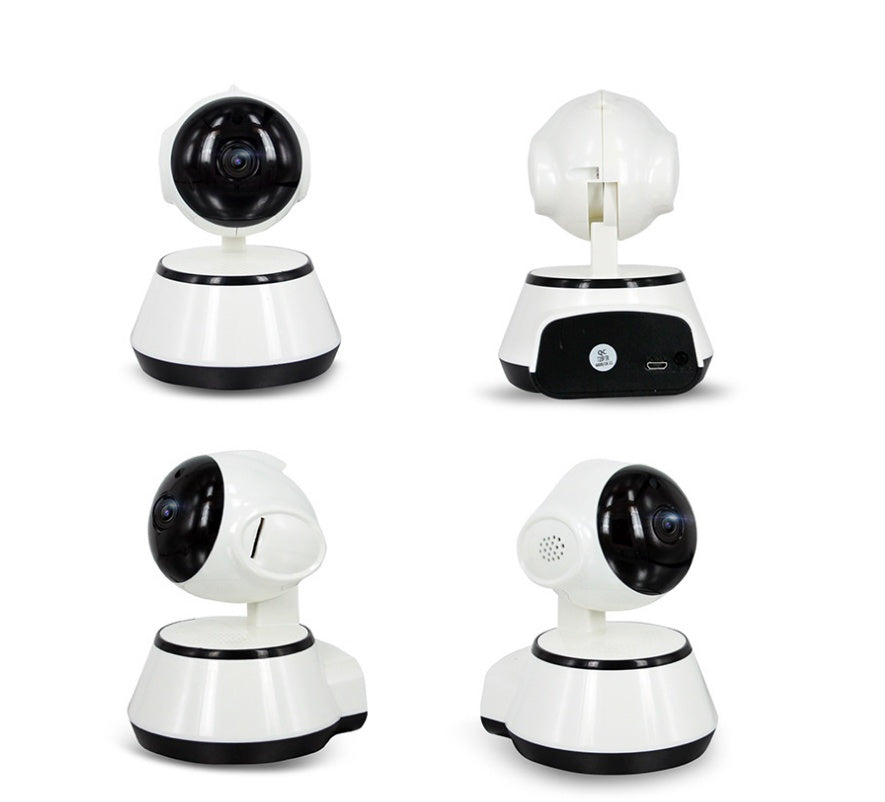

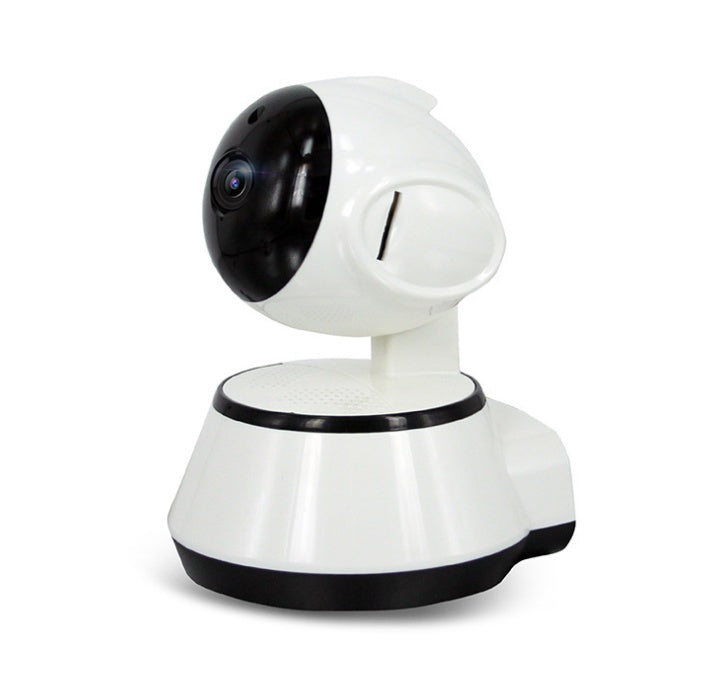

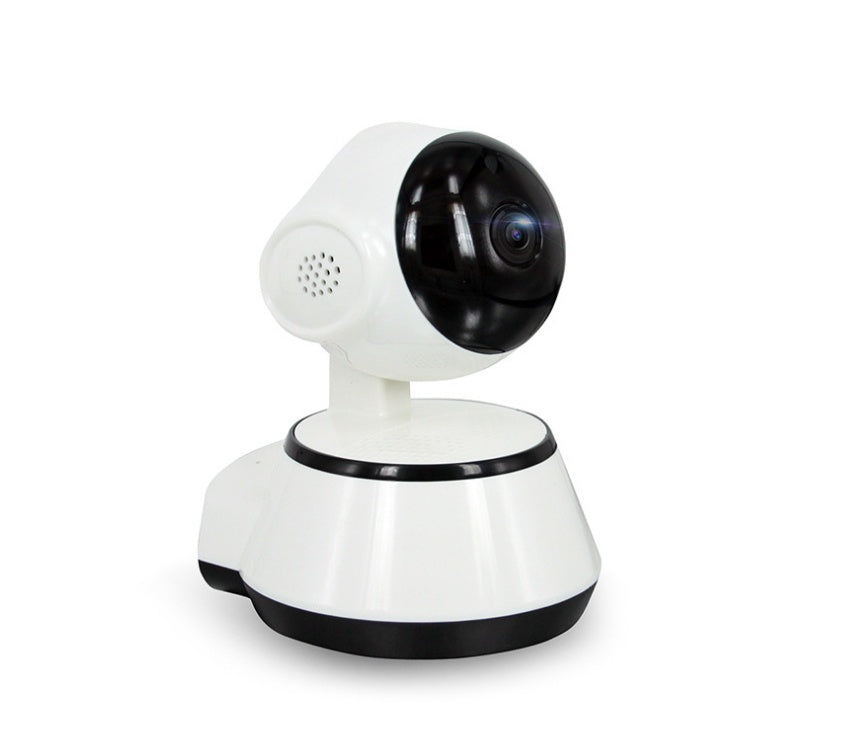

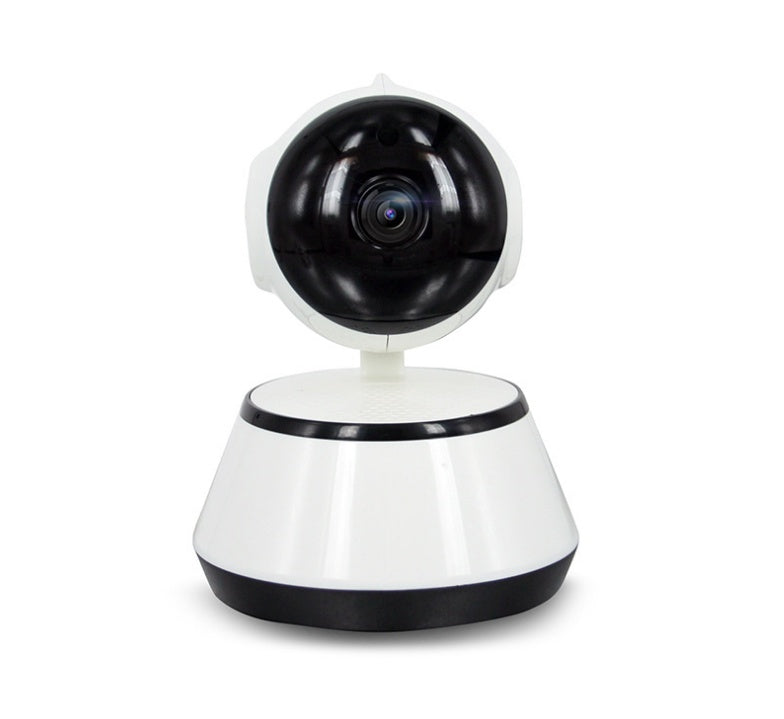

Wireless Surveillance Camera with Card Reader, 1 Million Pixels Wide-angle Panorama, Wifi Home Phone Connectivity Device
Product name: | P2P network HD video camera |
Product model: | X9100C-PH36 |
technical parameter | |
Processor: | AK3918E+SC1145 |
Platform: | 360eye.cc |
Operating system: | Embedded LINUX operating system |
Image sensor: | 1/4 HD CMOS 1 megapixel CMOS sensor; |
Video format: | HD (1280*720P) VGA (640*480) |
Video coding: | H.264 |
Video frame rate: | 1-30 frame |
Video mode: | Manual video recording, time recording, alarm recording |
Video playback mode: | Mobile client + PC client |
Audio input and output: | Input:built-in microphone 45DB; output:built-in 8Ω2W speaker |
Built in lens: | 3.6MM (standard) optional |
Infrared night vision effect: | The photosensitive resistance sensor switch, the LED lamp night vision 10 meters, (IR-CUT switch) |
Focusing method: | Manual |
Minimum illumination: | 0.1Lux/F1.2 |
PTZ control: | Horizontal rotation 355 degrees vertical 100 |
Local storage | Support MicroSD inserted 64GB card, support 24 hours of video or video alarm |
Support multiple protocols: | TCP/UDP, IP, HTTP, SMTP, DHCP, UPNP, NTP, ONVIF |
Wifi: | 3DB built-in antenna support IEEE 802.11b/g/n |
Image rotation: | Mirror / upside down |
Video control: | Support |
Motion detection: | Support |
Alarm action: | The alarm bell / mobile phone client push |
Firmware upgrade: | Remote upgrade through the network |
System interface: | 1 USB interface ,1 TF interface |
Supply voltage: | 5V2A |
Working temperature: | 0 degrees C ~55 C |
Applicable scenarios: | indoor |
Single size: | 8.6*8.7*11cm |
Packing size: | 16.5*12.4*10.1cm |
Single weight: | 179g |
Packing weight: | 367g |
Outer box: | 64*34*52.5CM |

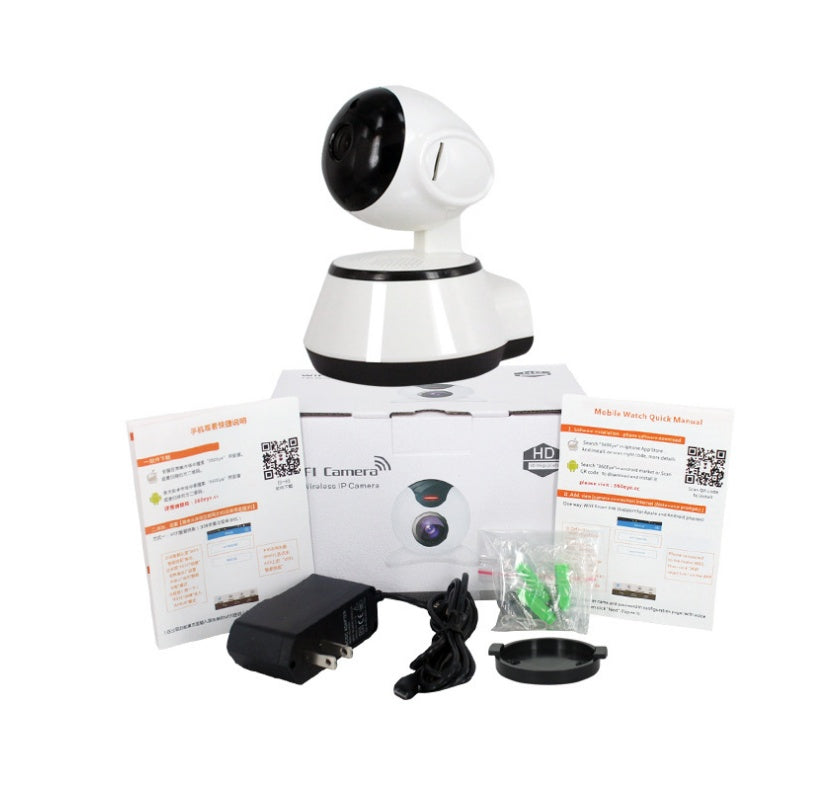

Packaging accessories | 1 color box |
2 inner support | |
3 Instructions | |
4 power supply | |
5 screw package |
